30,000 L Tank
Water Tank

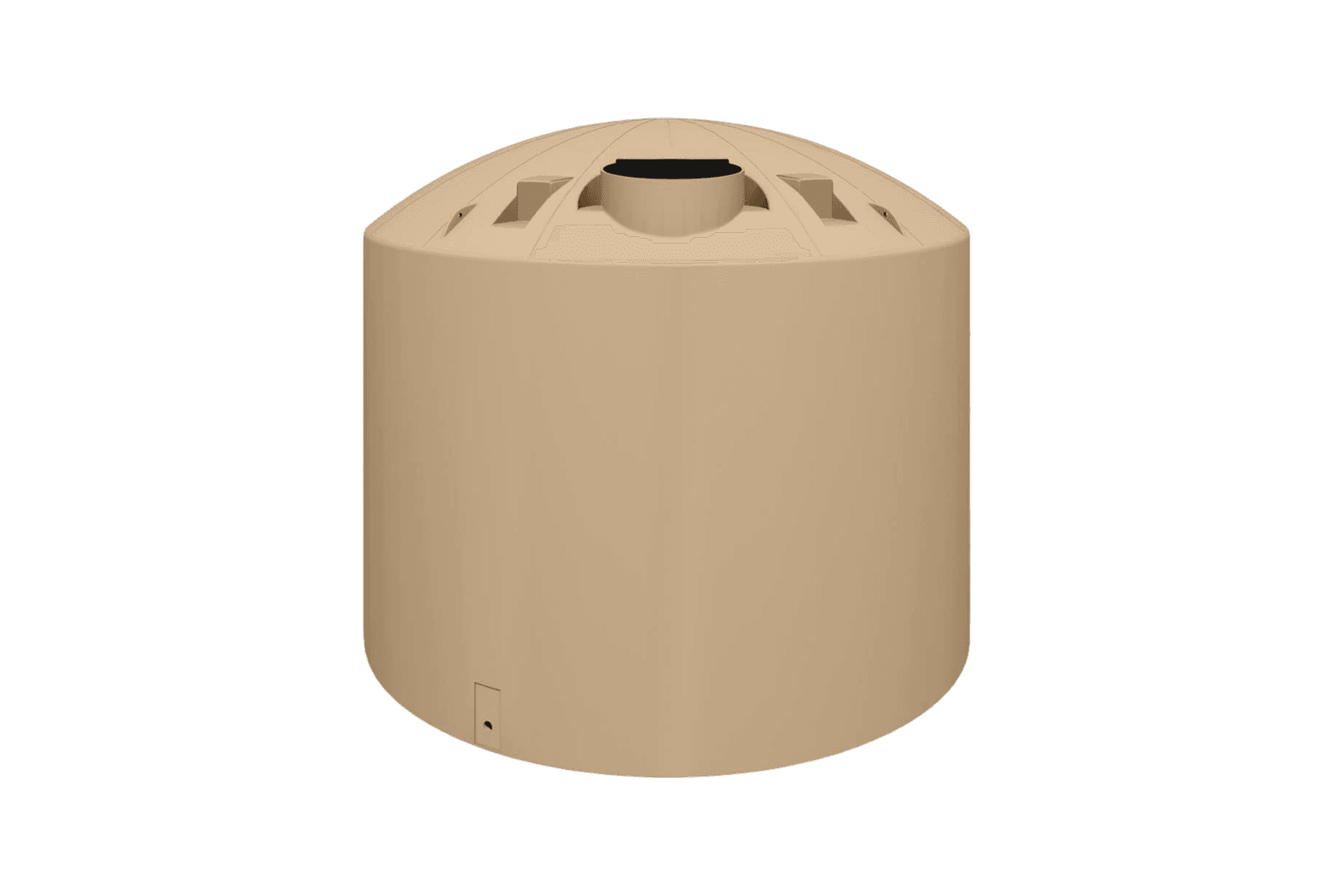

The Devan 30,000 litre water tank provides a durable and reliable solution for large-scale water collection and storage.
Manufactured from UV-stabilised medium-density polyethylene, it is designed to withstand New Zealand’s harsh environmental conditions and features a super-tough dome with a space-frame substructure for added strength. The tank is suitable for rainwater and stormwater storage and is available in a range of colours.
Technical Specs
Empty weight: 475kg
Specific gravity – max: 1.0
Max working temperature: 30ºC
Raw material type: Medium density polyethylene
Manhole size: 600mm (located at 6 o’clock)
Diameter: 3.7m
Overall height: 3.1m
Bottom of Overflow panel: 2.7m
Overflow panels: 4 off (1, 5, 7 & 11 o’clock)
Height to dome part line: 2.58m
Outlet size: 50mm BSPT (2 off)
Outlet – base to centre line: 115mm
Maximum no. of moulded in outlets: 4
Outlet location(s) – standard: 1 & 7 o’clock
Other available locations – non standard: 5 & 11 o’clock
Lifting eyes: 4 (1, 5, 7 & 11 o’clock)
The Devan 30,000 litre water tank provides a durable and reliable solution for large-scale water collection and storage.
Manufactured from UV-stabilised medium-density polyethylene, it is designed to withstand New Zealand’s harsh environmental conditions and features a super-tough dome with a space-frame substructure for added strength. The tank is suitable for rainwater and stormwater storage and is available in a range of colours.
Technical Specs
Empty weight: 475kg
Specific gravity – max: 1.0
Max working temperature: 30ºC
Raw material type: Medium density polyethylene
Manhole size: 600mm (located at 6 o’clock)
Diameter: 3.7m
Overall height: 3.1m
Bottom of Overflow panel: 2.7m
Overflow panels: 4 off (1, 5, 7 & 11 o’clock)
Height to dome part line: 2.58m
Outlet size: 50mm BSPT (2 off)
Outlet – base to centre line: 115mm
Maximum no. of moulded in outlets: 4
Outlet location(s) – standard: 1 & 7 o’clock
Other available locations – non standard: 5 & 11 o’clock
Lifting eyes: 4 (1, 5, 7 & 11 o’clock)
