Product Description
Product Description

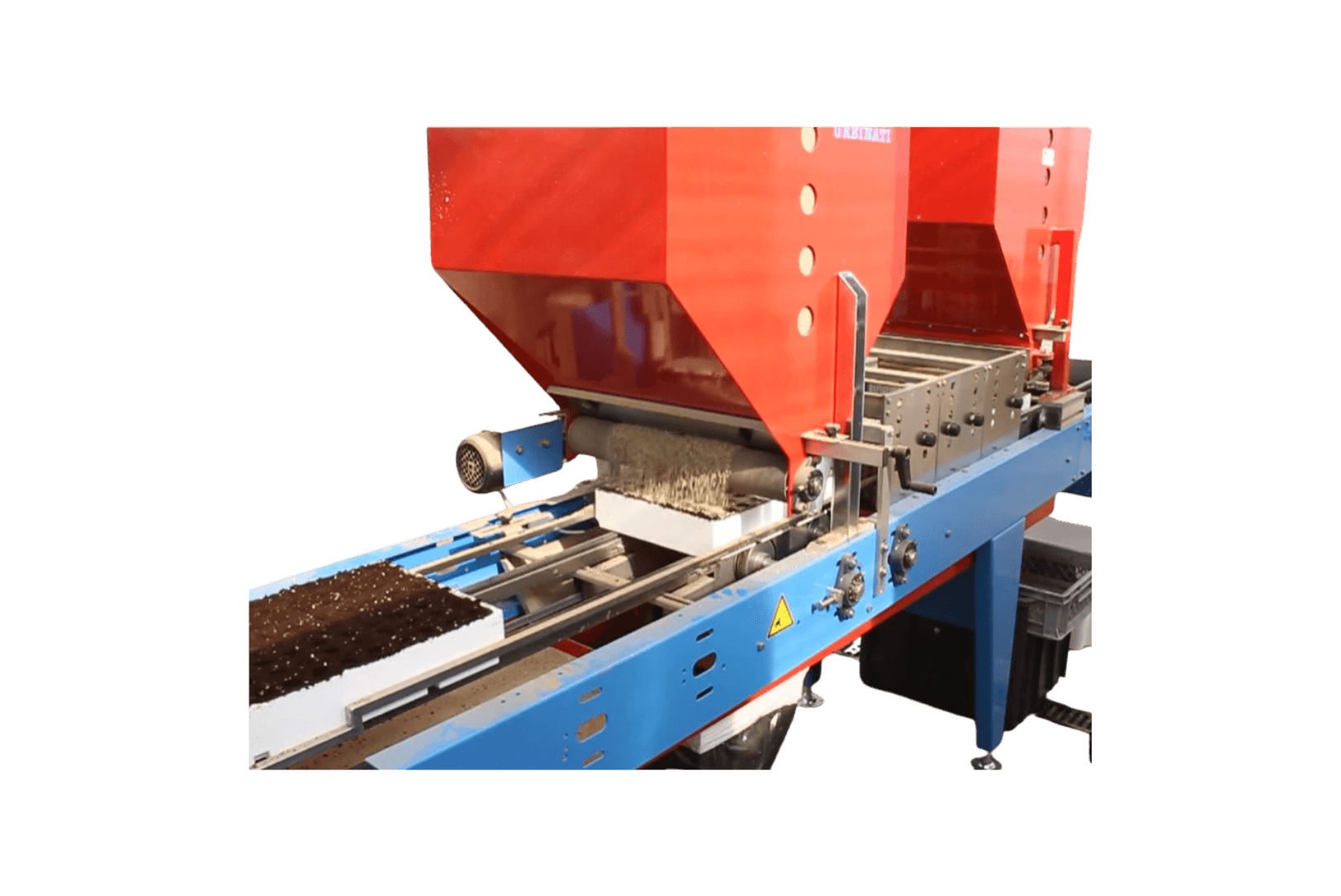

ALFA65
Drum Seeding
The ALFA65 is a compact and versatile row seeding line designed for nurseries seeking reliable performance and consistent results in small to medium production environments.
Its modular layout allows it to integrate easily into existing workflows while maintaining a simple and efficient operating process.
The ALFA65 can work with a wide range of tray types, including polystyrene, thermoformed, and rigid injection‑moulded trays. Optional automation solutions allow for the insertion of empty containers into the line, supporting smooth and continuous operation.
Uniform tray filling ensures even substrate distribution across all cells, creating a consistent base for seeding. The seeding process is precise and controlled, placing seeds accurately into each cell while forming a dibble hole that positions the seed centrally and at the correct depth.
Designed with flexibility in mind, the ALFA65 adapts easily to different crops and production needs, offering an efficient and dependable solution for nurseries looking to maintain quality and consistency across a variety of planting programs.
Technical Specs
2-movements pneumatic tray destacker for polystyrene trays.
Hopper capacity 900 litres. Conveyor belt with rollers and paddles shaft agitator on hopper’s bottom.
Double chain soil elevator, width = 470 mm.
Tray filler with 4 blades longitudinal rotor, with rotation reversing gear.
Double auger spillway with motorized brush for tray cleaning.
Recycling hopper for exceeding soil with auger.
Sowing drum with brass inserts: the inserts allow the creation of precise holes starting from 0.15 mm in diameter.
Dibbler drum with cleaning brush.
Air bars with double row of nozzles and oscillating seed holding plate.
Adjustable speed hammers to improve the singularization and positioning of the seed in the center of the hole.
Control panel with 8.4” colour touch-screen.
Covering unit for vermiculite, with adjustable speed and dosage; capacity 230 litres.
Watering unit with drilled bars modules: length 750 mm with 4 bars.
Stacking unit, with balance stacker.
Seed recovery drawer.
Soil recovery drawer.
Longitudinal tray advancement.
Quick self-centring guide adjustment system.
The ALFA65 is a compact and versatile row seeding line designed for nurseries seeking reliable performance and consistent results in small to medium production environments.
Its modular layout allows it to integrate easily into existing workflows while maintaining a simple and efficient operating process.
The ALFA65 can work with a wide range of tray types, including polystyrene, thermoformed, and rigid injection‑moulded trays. Optional automation solutions allow for the insertion of empty containers into the line, supporting smooth and continuous operation.
Uniform tray filling ensures even substrate distribution across all cells, creating a consistent base for seeding. The seeding process is precise and controlled, placing seeds accurately into each cell while forming a dibble hole that positions the seed centrally and at the correct depth.
Designed with flexibility in mind, the ALFA65 adapts easily to different crops and production needs, offering an efficient and dependable solution for nurseries looking to maintain quality and consistency across a variety of planting programs.
Technical Specs
2-movements pneumatic tray destacker for polystyrene trays.
Hopper capacity 900 litres. Conveyor belt with rollers and paddles shaft agitator on hopper’s bottom.
Double chain soil elevator, width = 470 mm.
Tray filler with 4 blades longitudinal rotor, with rotation reversing gear.
Double auger spillway with motorized brush for tray cleaning.
Recycling hopper for exceeding soil with auger.
Sowing drum with brass inserts: the inserts allow the creation of precise holes starting from 0.15 mm in diameter.
Dibbler drum with cleaning brush.
Air bars with double row of nozzles and oscillating seed holding plate.
Adjustable speed hammers to improve the singularization and positioning of the seed in the center of the hole.
Control panel with 8.4” colour touch-screen.
Covering unit for vermiculite, with adjustable speed and dosage; capacity 230 litres.
Watering unit with drilled bars modules: length 750 mm with 4 bars.
Stacking unit, with balance stacker.
Seed recovery drawer.
Soil recovery drawer.
Longitudinal tray advancement.
Quick self-centring guide adjustment system.
