NIR

Automatic Dibbling Machine

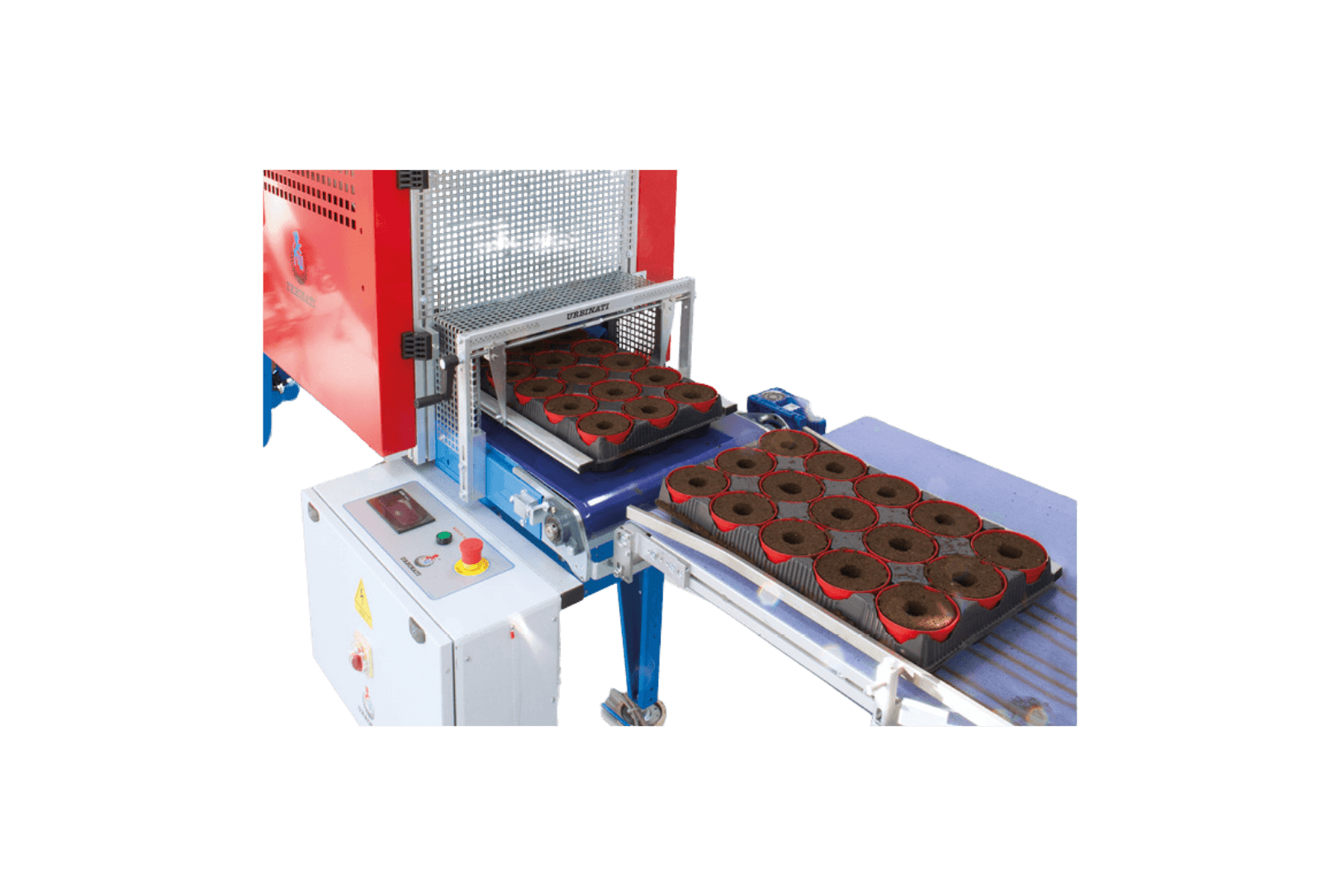

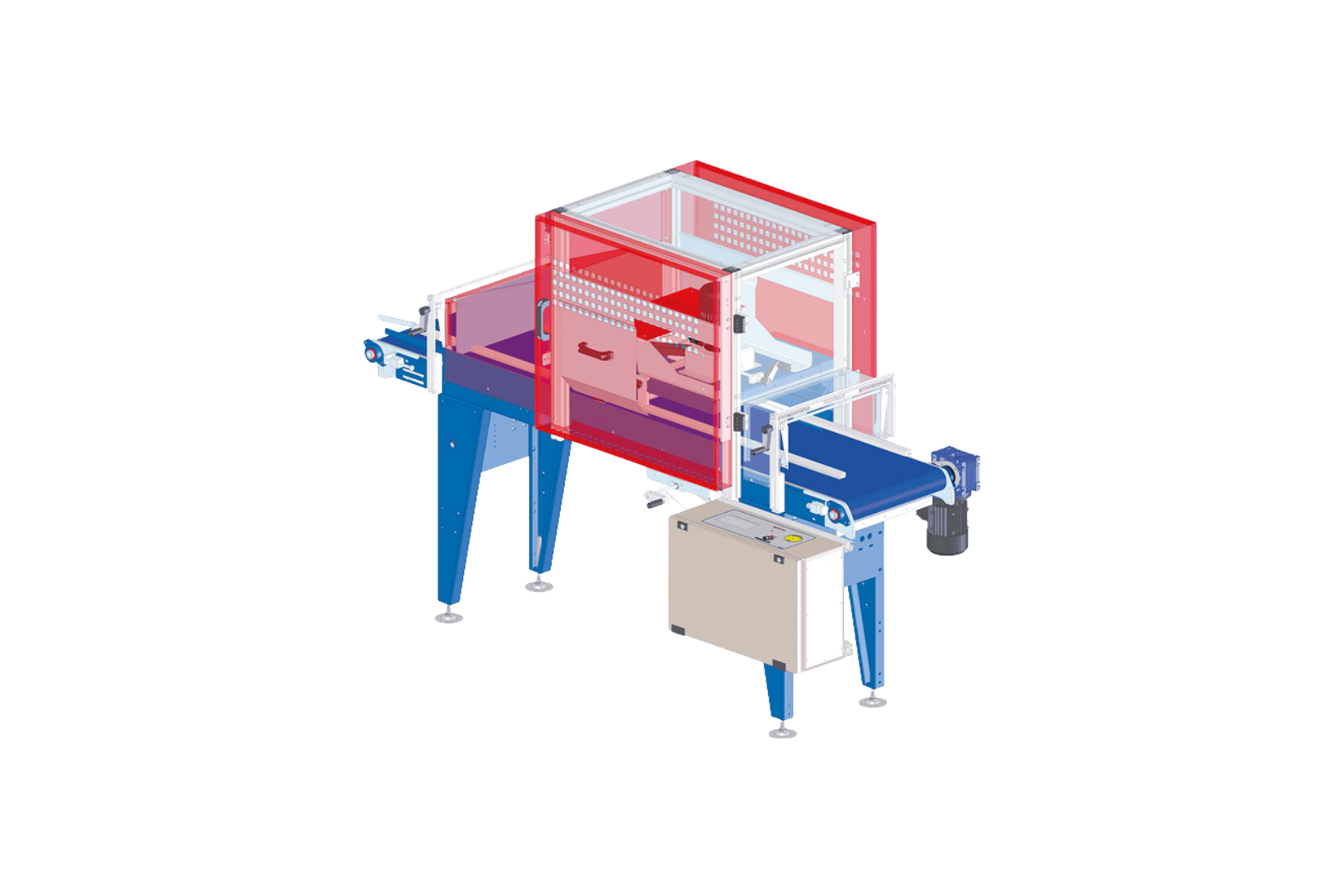

The NIR is an automatic drilling and dibbling machine engineered to prepare soil in containers for transplanting.


Equipped with a conveyor belt feed system, this versatile unit integrates seamlessly into an existing production line or operates independently as a standalone machine.


The machine features a custom drilling plate built to match your specific container requirements, which utilizes sliding support guides for quick, easy replacement. Dibbling depth can be modified instantly using a simple adjustment handle, and the individual drills are fully interchangeable, allowing you to adapt the system to changing production needs.

Technical Specs

  • Container positioning on belt is controlled by encoder and PLC.

  • Sliding guides to support the dibbling plate.

  • Guided soil press plate with springs.

  • Easily adjustable dibbling depth.

  • Belt length (standard) L = 2300 mm.

  • Speed variator for conveyor belt.

  • Customisable drill speed.

  • Air jet to remove the processed soil.

  • Control with 4.5” monochrome touch-screen panel.

  • Available in left and right version.

The NIR is an automatic drilling and dibbling machine engineered to prepare soil in containers for transplanting.


Equipped with a conveyor belt feed system, this versatile unit integrates seamlessly into an existing production line or operates independently as a standalone machine.


The machine features a custom drilling plate built to match your specific container requirements, which utilizes sliding support guides for quick, easy replacement. Dibbling depth can be modified instantly using a simple adjustment handle, and the individual drills are fully interchangeable, allowing you to adapt the system to changing production needs.

Technical Specs

  • Container positioning on belt is controlled by encoder and PLC.

  • Sliding guides to support the dibbling plate.

  • Guided soil press plate with springs.

  • Easily adjustable dibbling depth.

  • Belt length (standard) L = 2300 mm.

  • Speed variator for conveyor belt.

  • Customisable drill speed.

  • Air jet to remove the processed soil.

  • Control with 4.5” monochrome touch-screen panel.

  • Available in left and right version.
