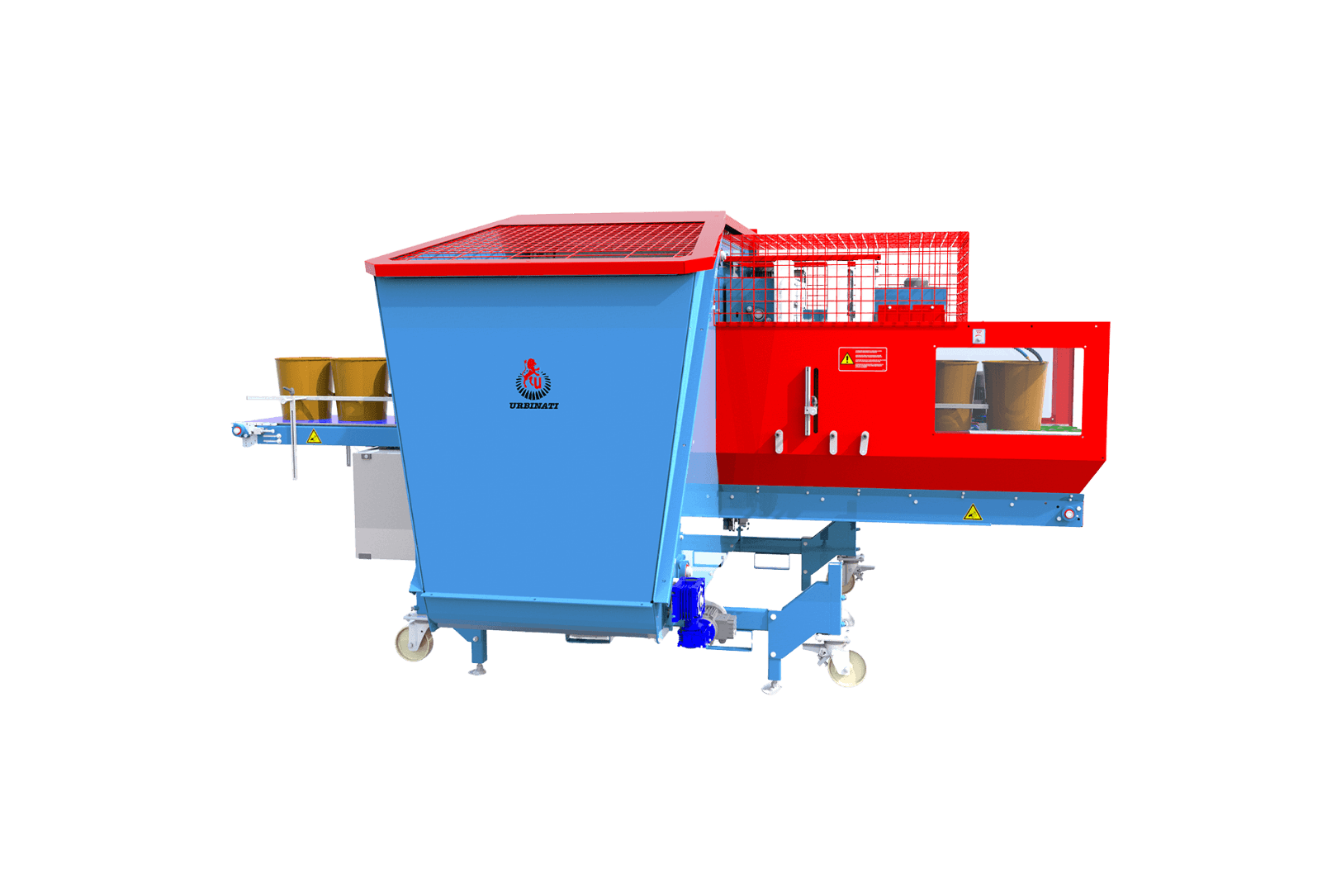

RGV
Filling Machine For Big Volume



The RGV is a high-performance automatic soil filler designed to deliver fast and uniform filling across a wide range of pots, trays, and retail packs.
Engineered to accommodate large-scale greenhouse and nursery operations, the machine handles a high substrate flow rate of up to 400 litres per minuteand processes large containers up to 450 mm in height. Soil density and final compaction within the containers are fully adjustable via an integrated longitudinal drop system utilizing a heavy-duty 4-blade rotor.
At the center of the RGV is an oversized soil elevator driven by a robust, galvanized double-chain system. This heavy-duty assembly is built to minimize long-term maintenance requirements while extending overall machine efficiency. To optimize resource consumption, the filler incorporates a soil recovery system that captures and recirculates over 80% of excess soil back into the production cycle. The RGV features standard electromechanical operation and can be customized with an optional PLC system to enable full remote operational management.
Technical Specs
Hopper capacity 750 litres, with paddle shaft agitator on the bottom for a complete emptying.
Soil elevator with double galvanized and sturdy chain: width 800 mm, flow rate up to 400 litres/min.
Adjustable speed conveyor belt: from 2.5 to 12 m/min.
4-blade longitudinal rotor: height adjustable with crank, electronically adjustable speed.
Compactor drum, spillway and brush for cleaning containers with adjustable height with cranks.
Motorized outfeed roller conveyor with 8 rows of rollers.
Remote control panel with potentiometers, which can be positioned on all sides of the machine.
Soil loading hopper that can be positioned on the right or left hand of the belt.
The RGV is a high-performance automatic soil filler designed to deliver fast and uniform filling across a wide range of pots, trays, and retail packs.
Engineered to accommodate large-scale greenhouse and nursery operations, the machine handles a high substrate flow rate of up to 400 litres per minuteand processes large containers up to 450 mm in height. Soil density and final compaction within the containers are fully adjustable via an integrated longitudinal drop system utilizing a heavy-duty 4-blade rotor.
At the center of the RGV is an oversized soil elevator driven by a robust, galvanized double-chain system. This heavy-duty assembly is built to minimize long-term maintenance requirements while extending overall machine efficiency. To optimize resource consumption, the filler incorporates a soil recovery system that captures and recirculates over 80% of excess soil back into the production cycle. The RGV features standard electromechanical operation and can be customized with an optional PLC system to enable full remote operational management.
Technical Specs
Hopper capacity 750 litres, with paddle shaft agitator on the bottom for a complete emptying.
Soil elevator with double galvanized and sturdy chain: width 800 mm, flow rate up to 400 litres/min.
Adjustable speed conveyor belt: from 2.5 to 12 m/min.
4-blade longitudinal rotor: height adjustable with crank, electronically adjustable speed.
Compactor drum, spillway and brush for cleaning containers with adjustable height with cranks.
Motorized outfeed roller conveyor with 8 rows of rollers.
Remote control panel with potentiometers, which can be positioned on all sides of the machine.
Soil loading hopper that can be positioned on the right or left hand of the belt.
